Name: AC Infinity AXIAL 9238, Muffin 120V AC Cooling Fan, 92mm x 92mm x 38mm
SKU: 594802

Description

Designed for cooling or ventilation projects: This fan is perfect for any project that requires efficient cooling or ventilation. It can also be used as a replacement fan for various products.

Included accessories: This kit includes a heavy-duty aluminum fan, a power plug cord, two fan guards, and a set of mounting screws. These accessories ensure easy installation and optimal performance.

Durable construction: The fan is built to last with its dual-ball bearings, which have a lifespan of 67,000 hours. It can be laid flat or stand upright, providing flexibility in installation. The housing is made of die-cast aluminum, painted black for added durability in harsh environments.

High-speed performance: This model is designed to maximize airflow, making it ideal for applications where high air circulation is necessary. However, please note that it may produce louder noise levels, which may not be suitable for all environments.

Specifications: This fan measures 92 x 92 x 38 mm (3.6 x 3.6 x 1.5 in.) and operates at 100 to 120V AC. It provides an airflow of 47 CFM with a noise level of 40 dBA. The fan's speed is 2600 RPM, ensuring efficient cooling performance.

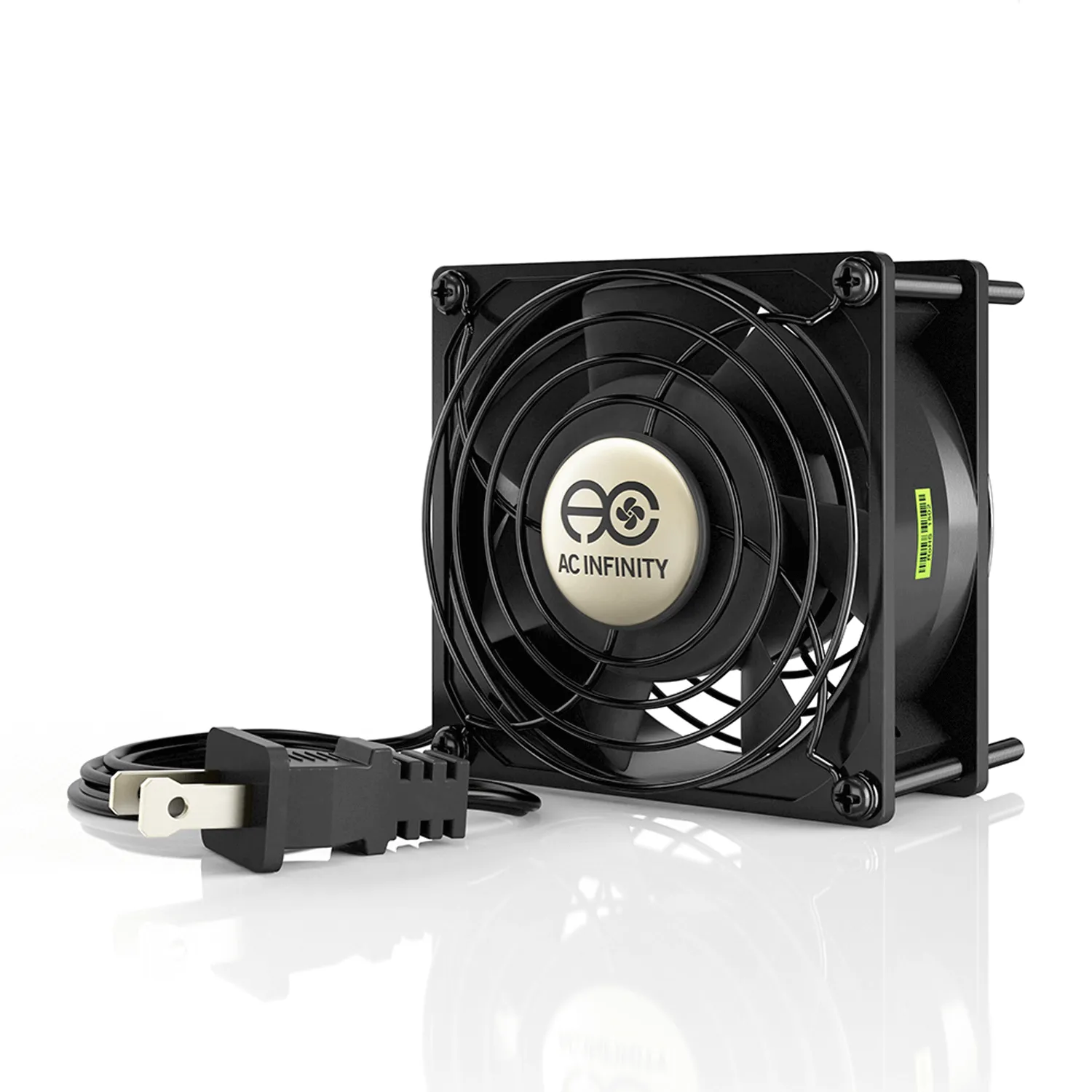

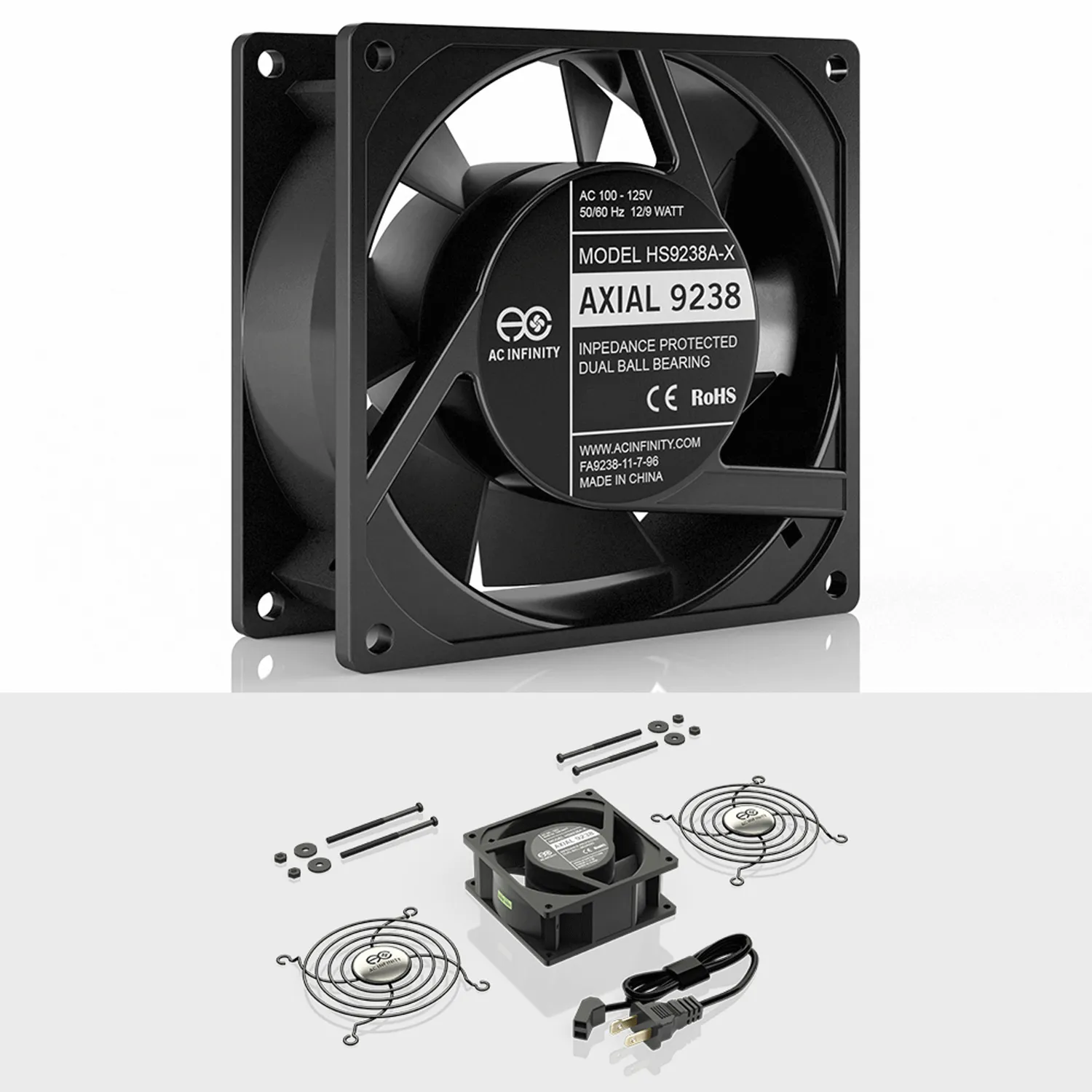

The heavy-duty axial fan kit is designed for custom projects or as a replacement fan. It operates on 100 to 120V AC and includes everything you need for easy installation and power connection. The fan comes with a 4-foot power cord that can be attached to the fan's metal terminals or converted into lead wires for wired AC power connection. Additionally, the kit includes two 92 millimeter metal fan guards and a set of mounting screws. These AC Infinity fans are certified by CE and RoHS.

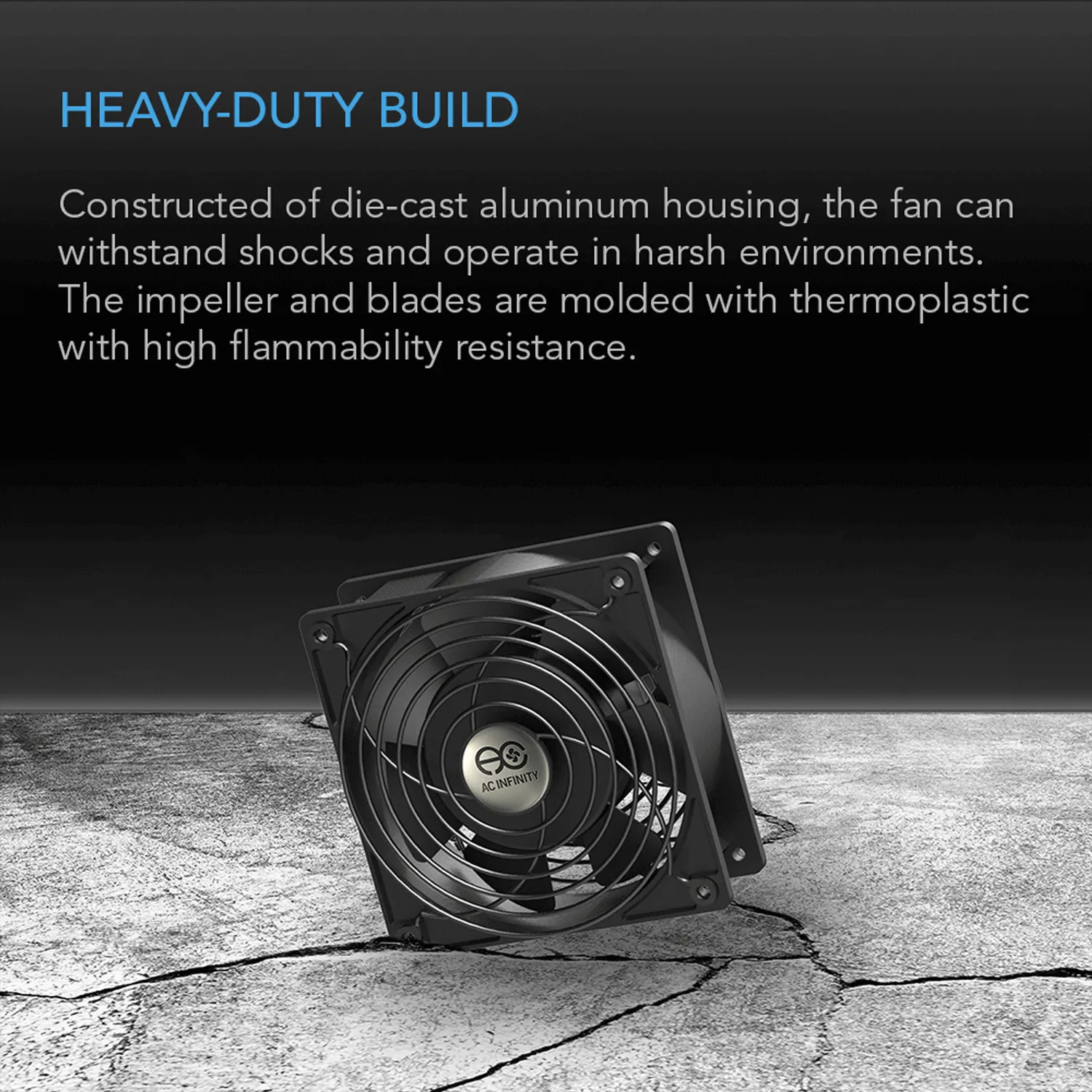

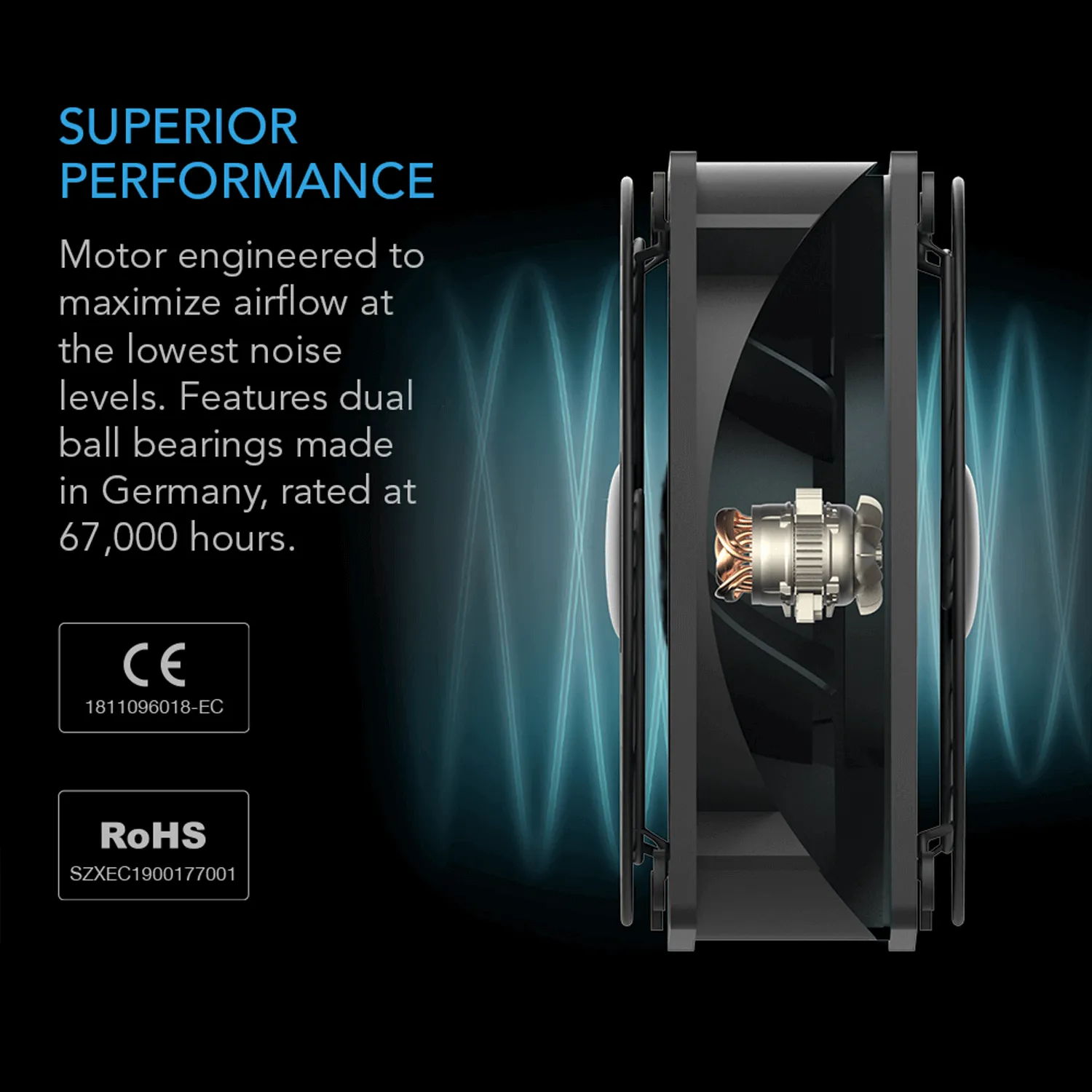

The fan's housing is made of die-cast aluminum, which is painted black and provides excellent durability even in harsh environments. The impeller and blades are molded with thermoplastic, ensuring a high resistance to flammability. The motors are impedance protected and designed to withstand higher heat during a rotor lock. With long-life dual-ball bearings, these fans are built to last and can be mounted in any direction.

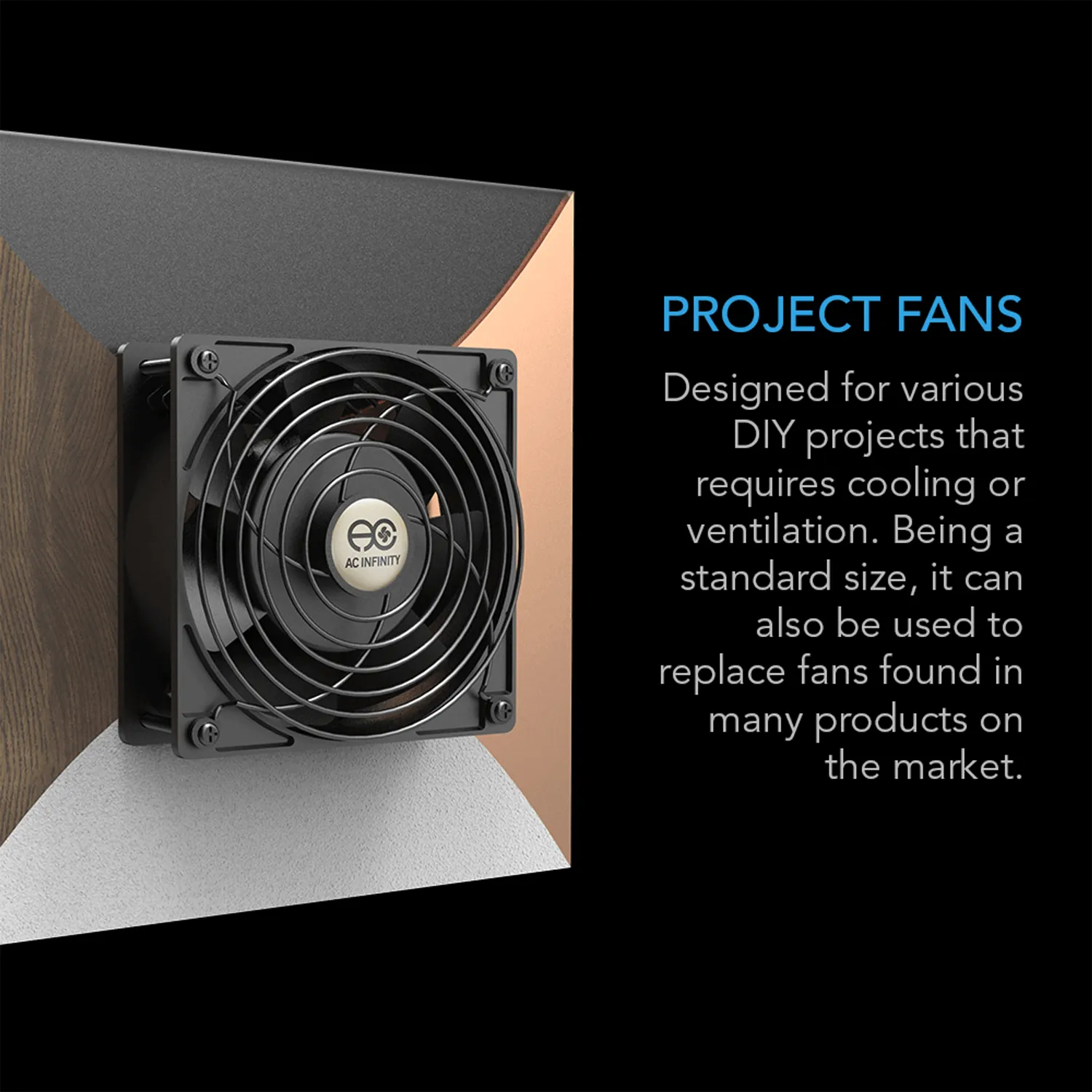

This high-speed fan is suitable for applications where maximizing airflow is the main goal and a louder noise level is acceptable. It is commonly used in casino machines, chicken coops, industrial machinery, arcade systems, and other similar settings. Additionally, due to its standard industrial size, it can easily replace fans found in various electronics and machinery.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AXIAL 9238

Product Model: HS9238A-X

UPC Code: 854759004266

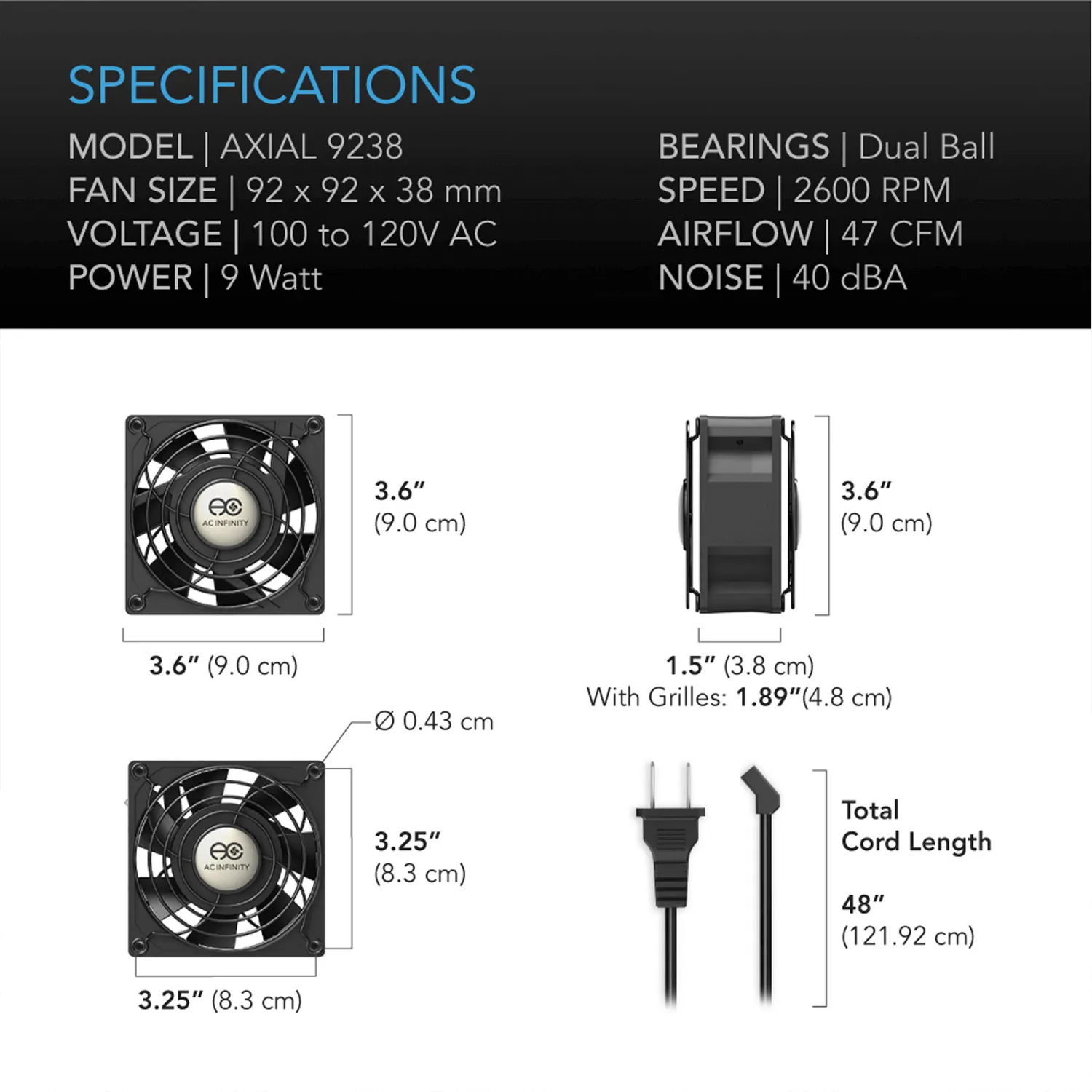

Product Dimensions

Total Dimensions: 3.6 x 3.6 x 1.5 in. (9.0 x 9.0 x 3.8 cm)

Hole to Hole Distance: 3.25 x 3.25 in. (8.3 x 8.3 cm)

Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)

Cord Length: 48 in. (4 feet)

Product Performance and Technical Specs

Total Airflow: 47 CFM

Total Noise: 40 dBA

Speed: 2600 RPM

Operating Voltage: 100 to 120V AC

Power: 9 W

Current: 0.08 A

Static Pressure: 5.9 mm-H2O

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:
