Name: AC Infinity AXIAL 1225, Muffin 120V AC Cooling Fan, 120mm x 120mm x 25mm, Low Speed
SKU: 589282

Description

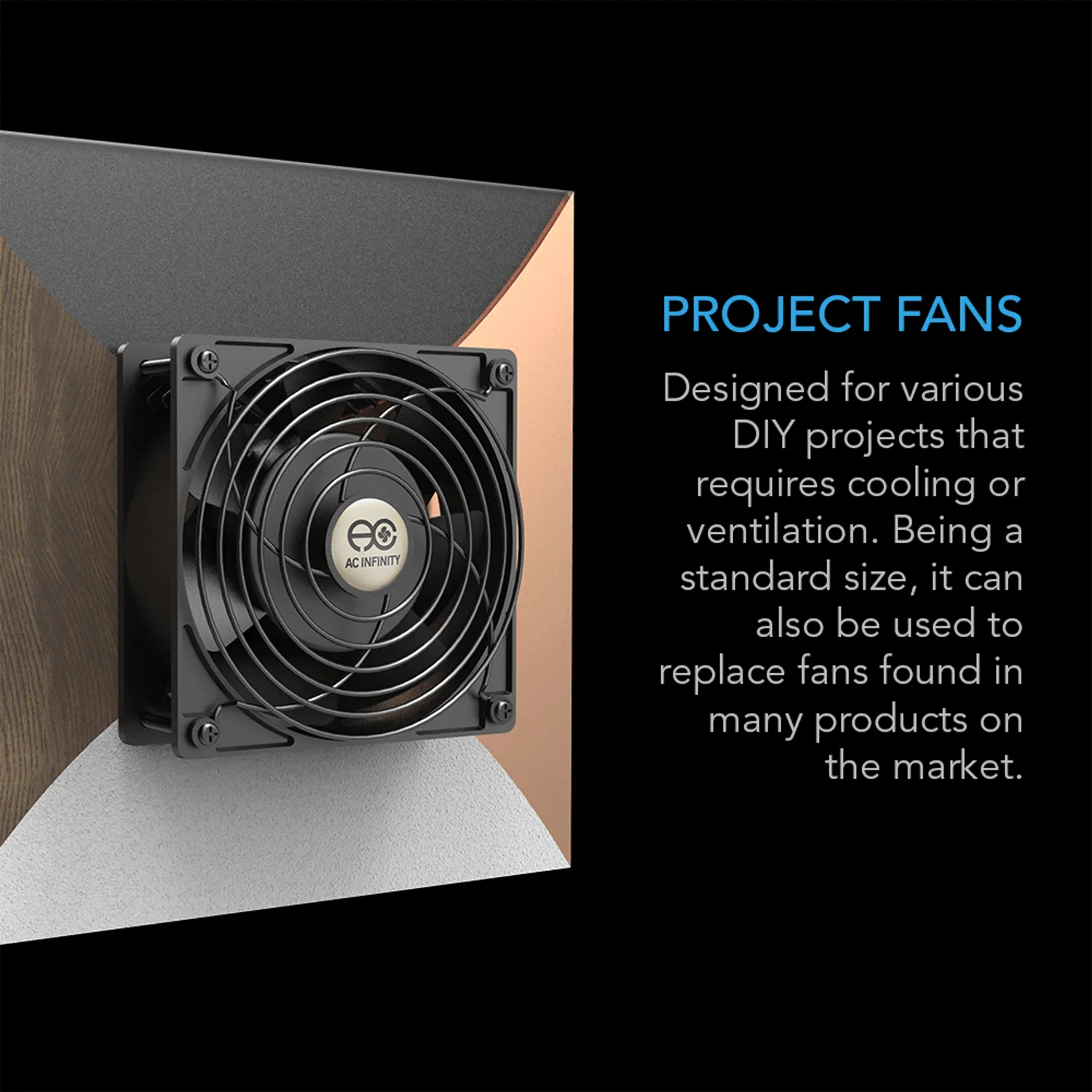

Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

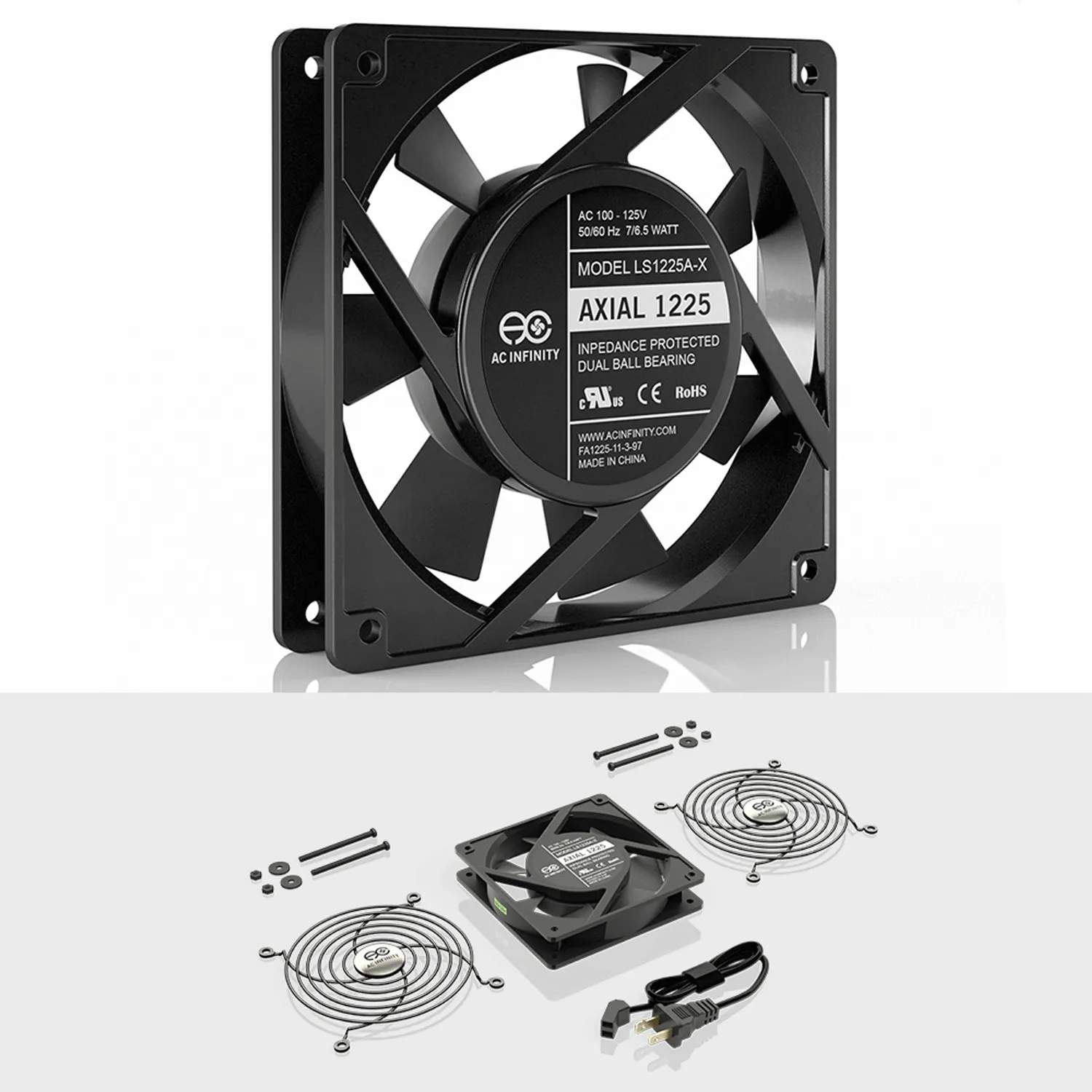

Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and a mounting screw set.

UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours. Can be mounted in any direction.

Low Speed: Has a lower noise and airflow rating than high-speed models.

120 x 120 x 25 mm (4.7 x 4.7 x 1 in.) | 100 to 120V AC | Airflow: 51 CFM | Noise: 30 dBA | Speed: 1800 RPM.

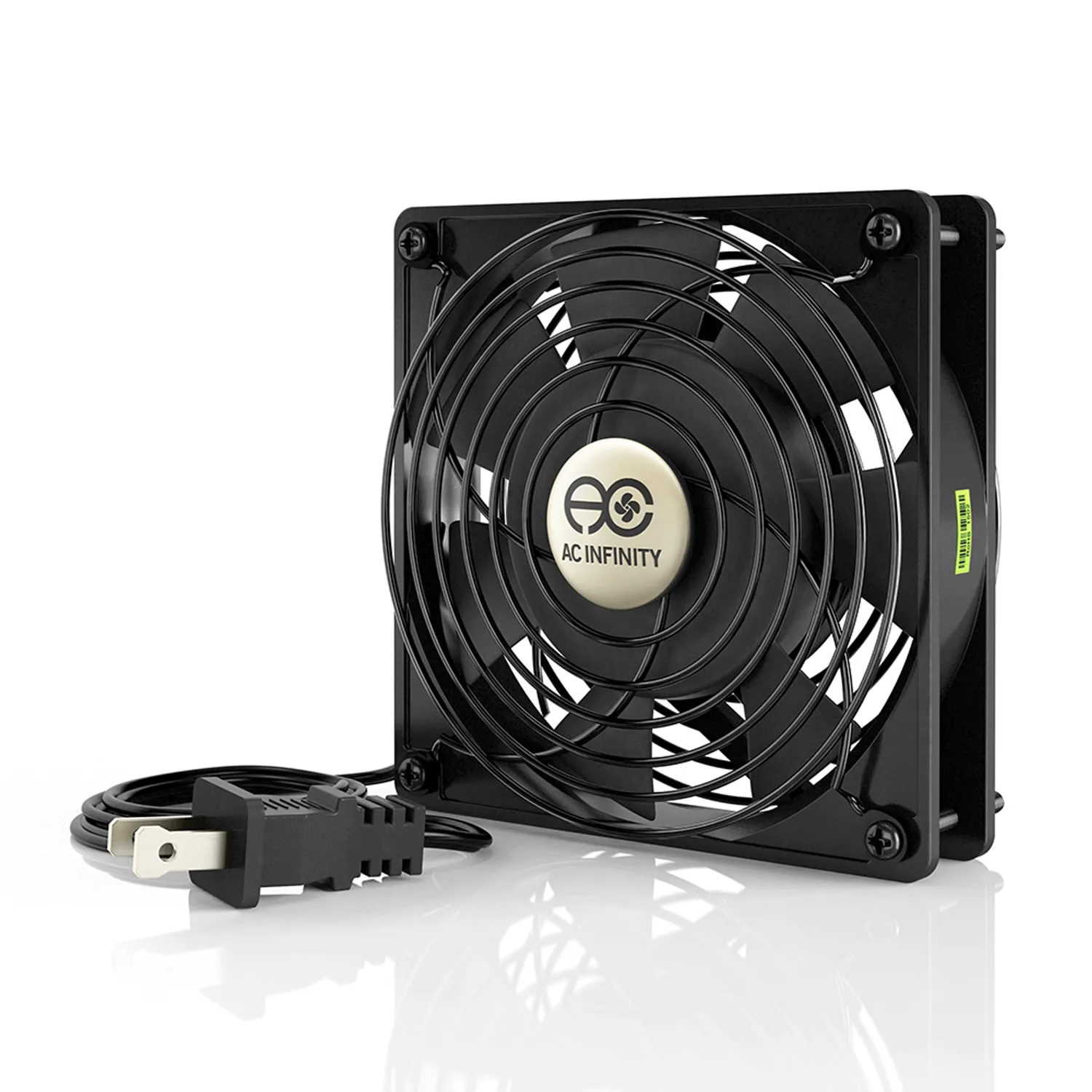

The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. It includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and converted into lead wires to be connected to a wired AC power source. Also includes two 120 millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903, and also CE and RoHS certified.

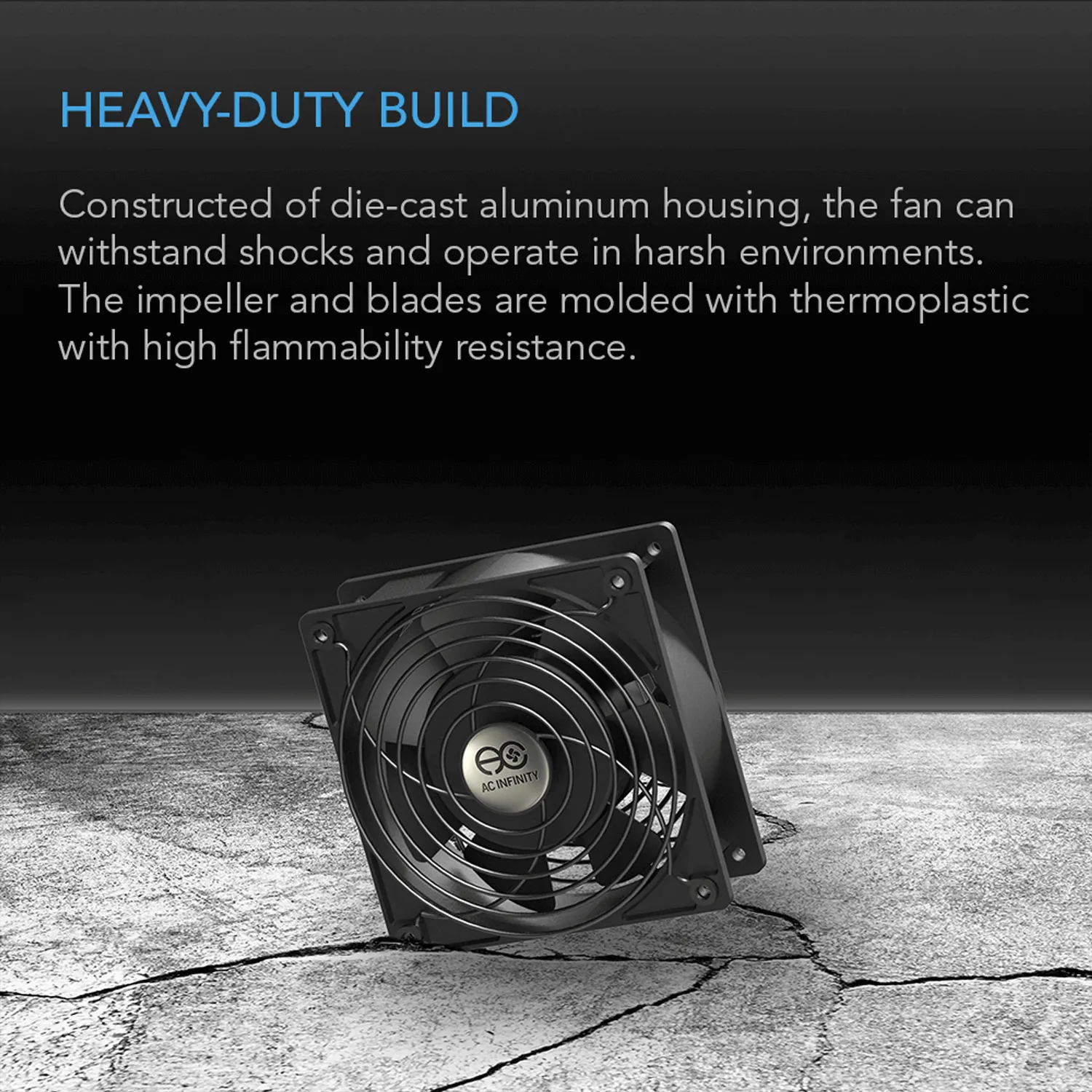

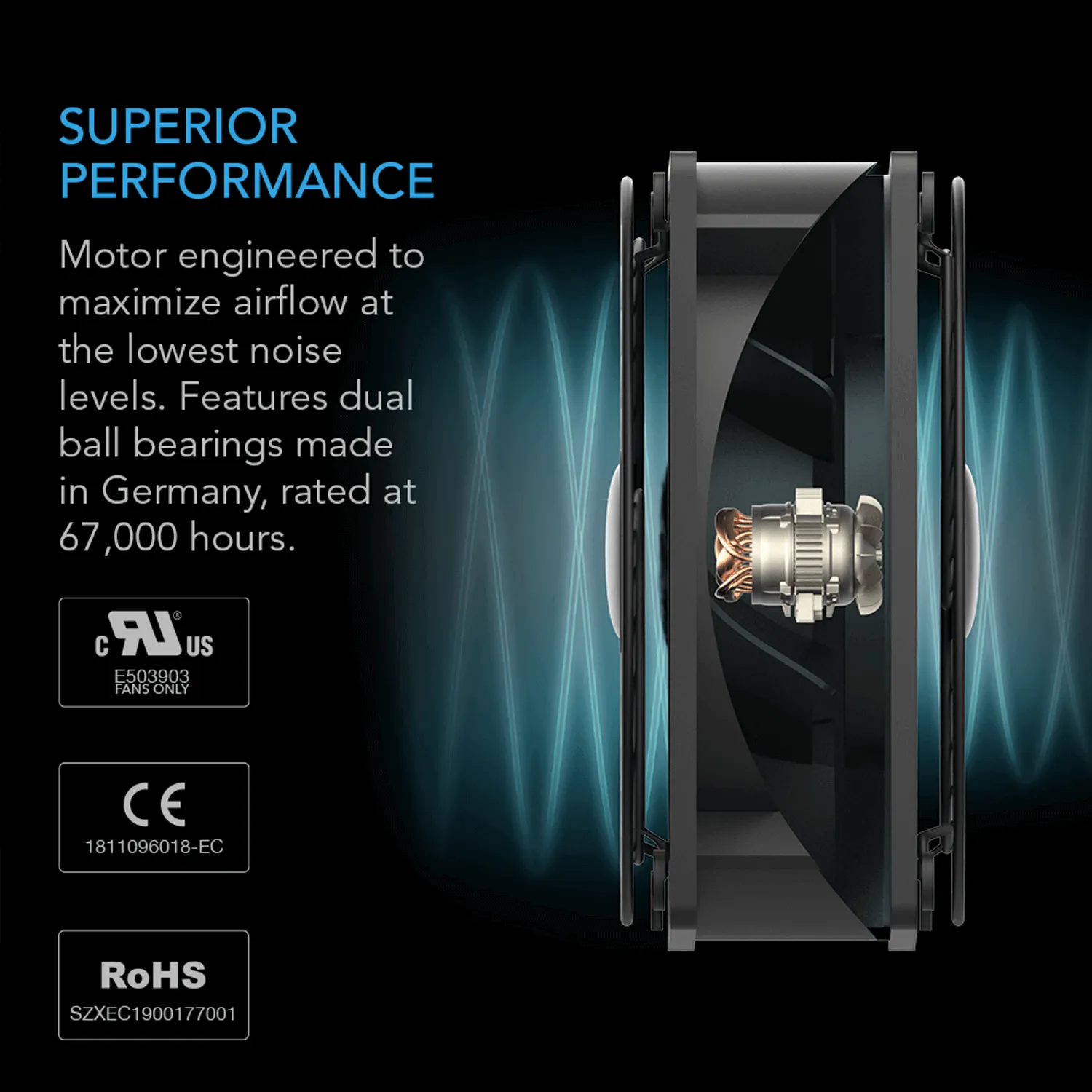

The fan's housing is constructed of die-cast aluminum painted black and able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic which have a high resistance to flammability. The impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock. Containing long-life dual ball bearings, the fans can be run continuously for 67,000 hours and be mounted in any direction.

This low-speed fan is suitable in applications that require a lower noise level and can accept a weaker airflow. Popular uses include theater cabinets, woodstove heaters, room-to-room doorways, amplifiers, kegerators, and more. Because this is a standard industrial size fan, it can be used to replace fans found in various electronics and machinery.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AXIAL 1225

Product Model: LS1225A-X

UPC Code: 854759004211

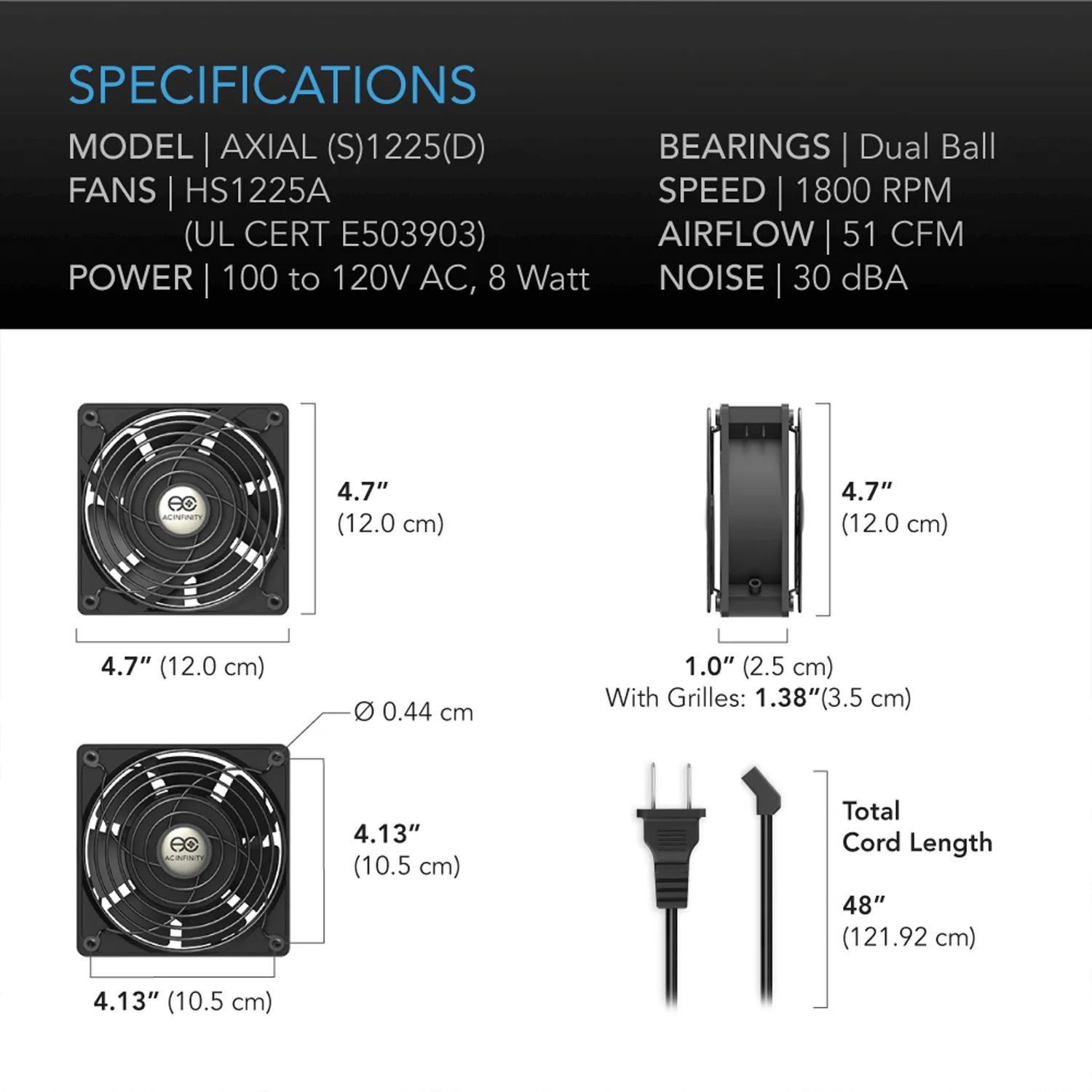

Product Dimensions

Total Dimensions: 4.7 x 4.7 x 1 in. (12.0 x 12.0 x 2.5 cm)

Hole to Hole Distance: 4.14 x 4.14 in. (10.5 x 10.5 cm)

Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)

Cord Length: 48 in. (4 feet)

Product Performance and Technical Specs

Fan Model: LS1225A

Total Airflow: 51 CFM

Total Noise: 30 dBA

Speed: 1800 RPM

Operating Voltage: 100 to 120V AC

Power: 8 W

Current: 0.07 A

Static Pressure: 2.2 mm-H2O

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet
