Name: AC Infinity AIRLIFT S16, Shutter Exhaust Ventilation Fan 16", Speed Controller
SKU: 548933

Description

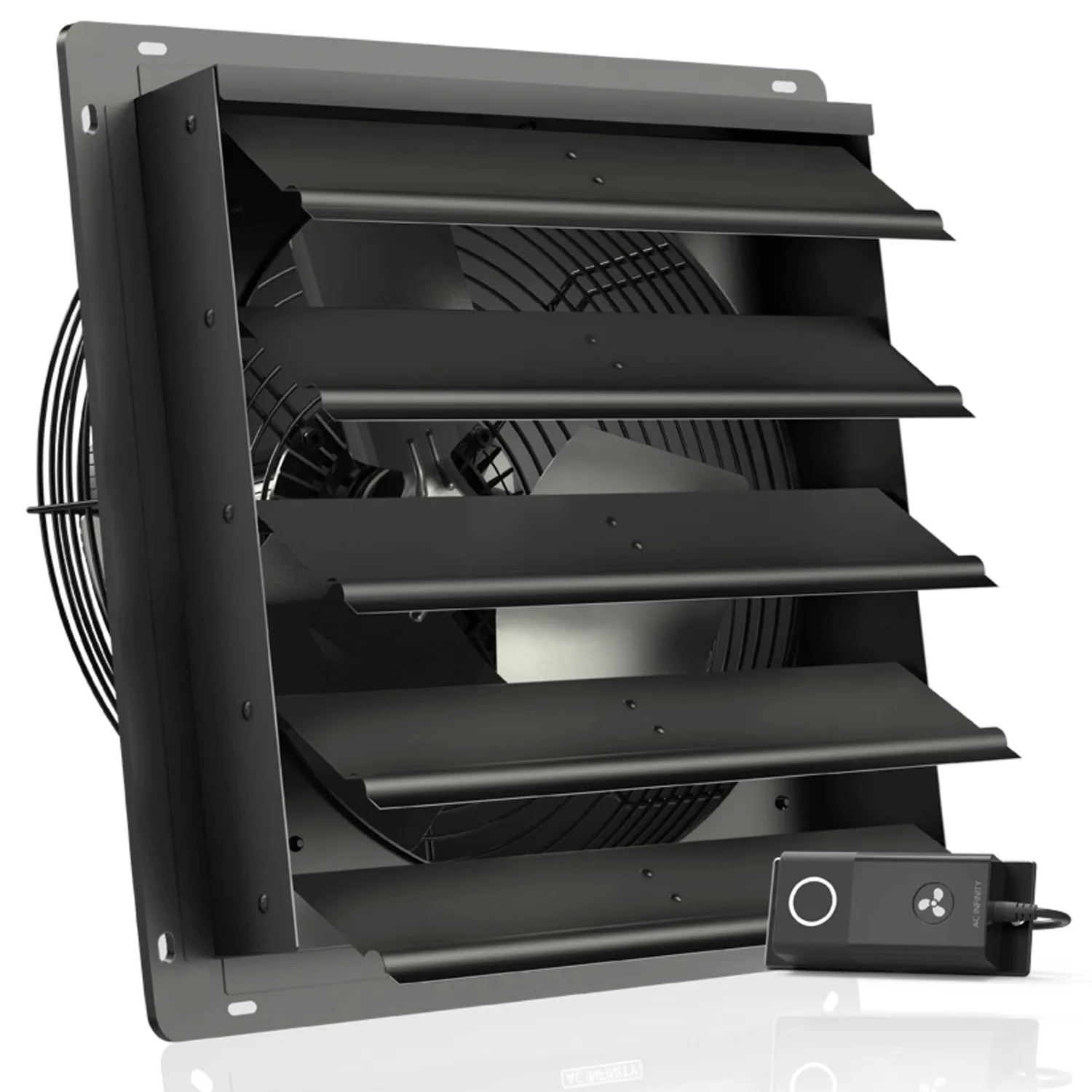

High-Airflow Exhaust Fan: This exhaust fan is designed to ventilate heat, moisture, odor and dust from various spaces. The 16" size fan, with dimensions of 19.09 x 19.09 x 7.72 inches, provides an airflow of 2560 CFM. Despite this high-performance, the fan operates at a noise level of 70 dBA. The fan's bearings are Dual Ball.

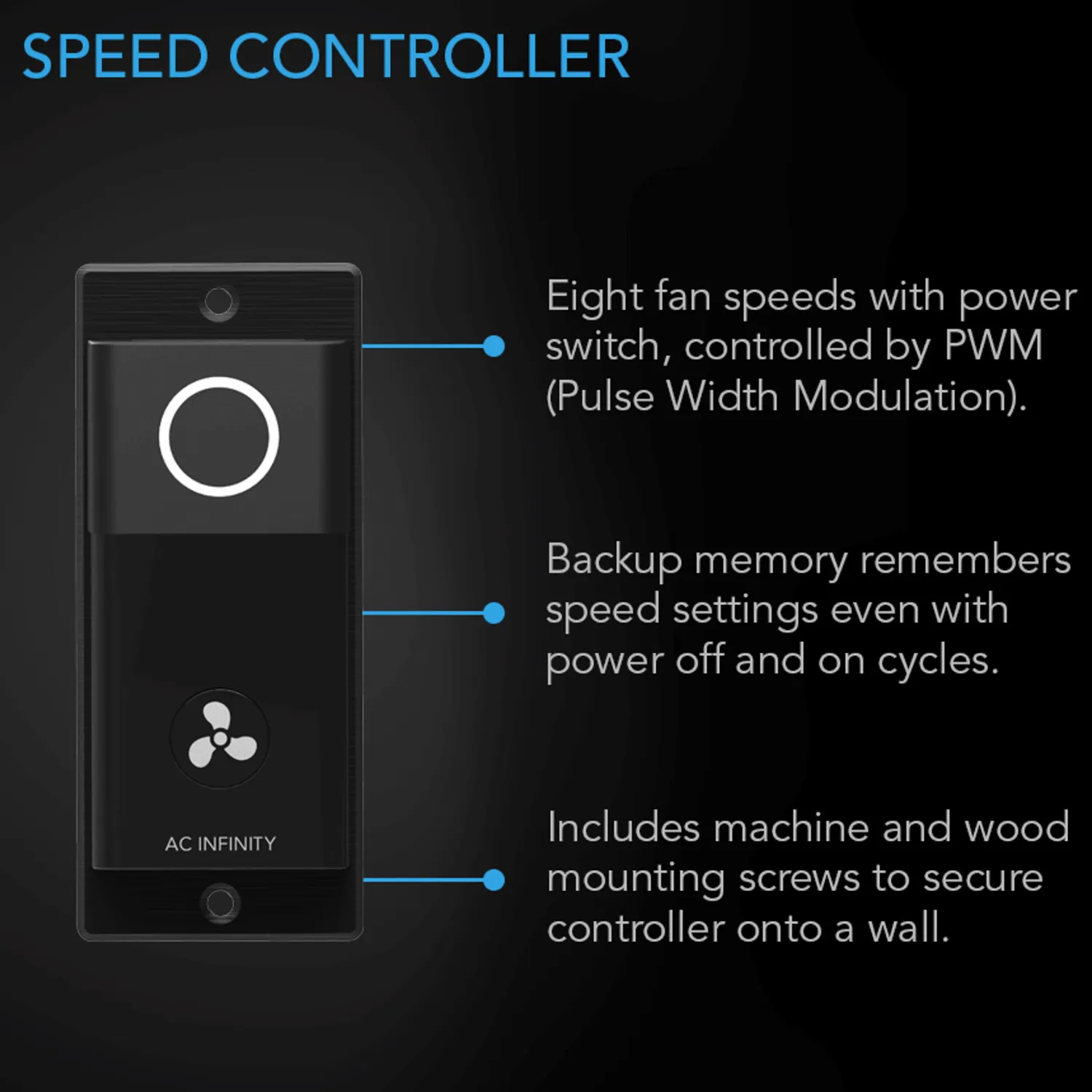

Advanced Manual Controller: It comes equipped with an 8-speed manual controller using PWM (Pulse Width Modulation). This controller allows precise control of the fan's speed, optimizing noise and airflow levels across a range of environments. The PWM-control feature also ensures the fan operates smoothly at extremely low RPM without generating excessive heat or noise.

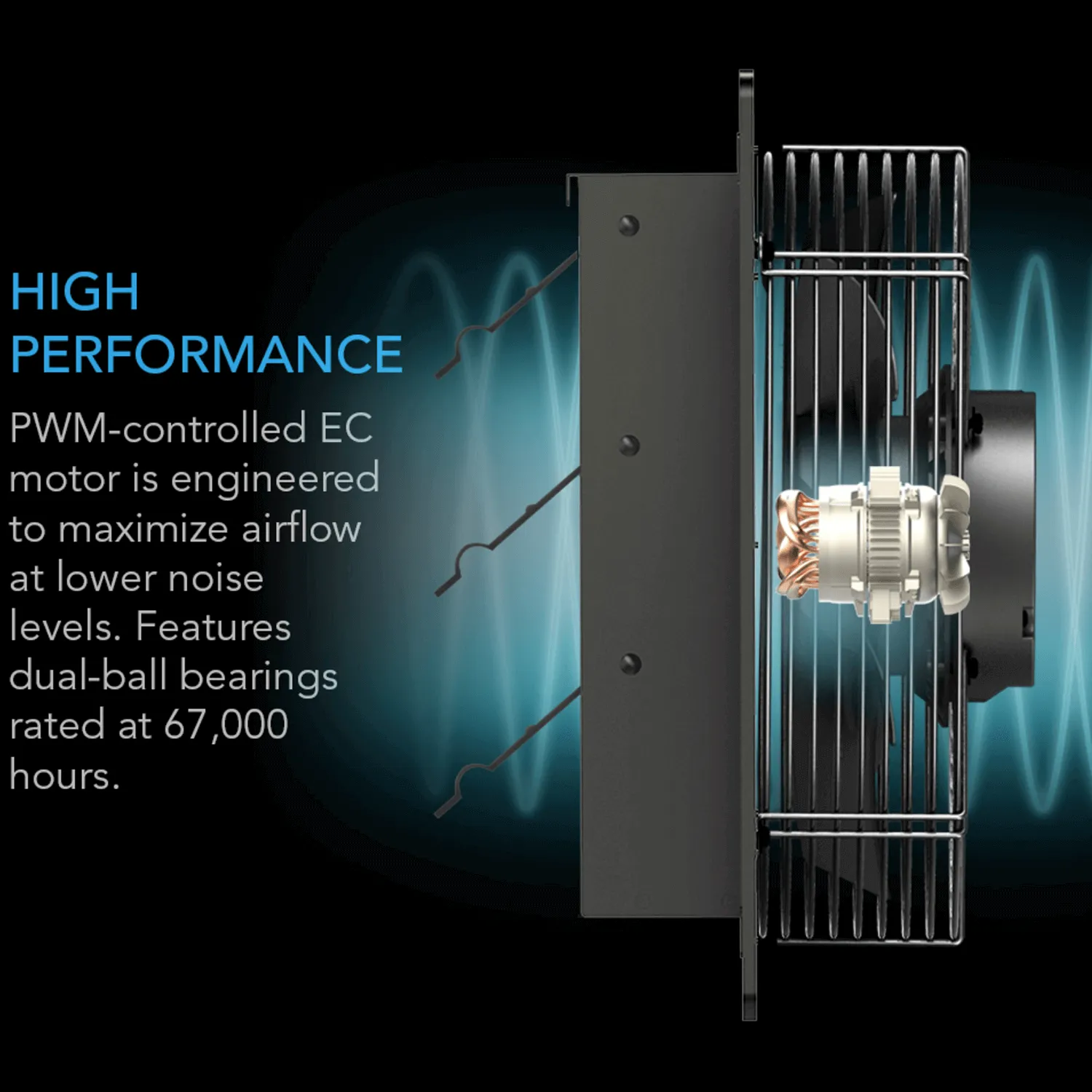

Innovative EC-Motor: The fan's EC-motor uses PWM-control to maximize airflow while still reducing energy consumption and noise levels. This state-of-the-art motor enhances performance without unnecessary power drain.

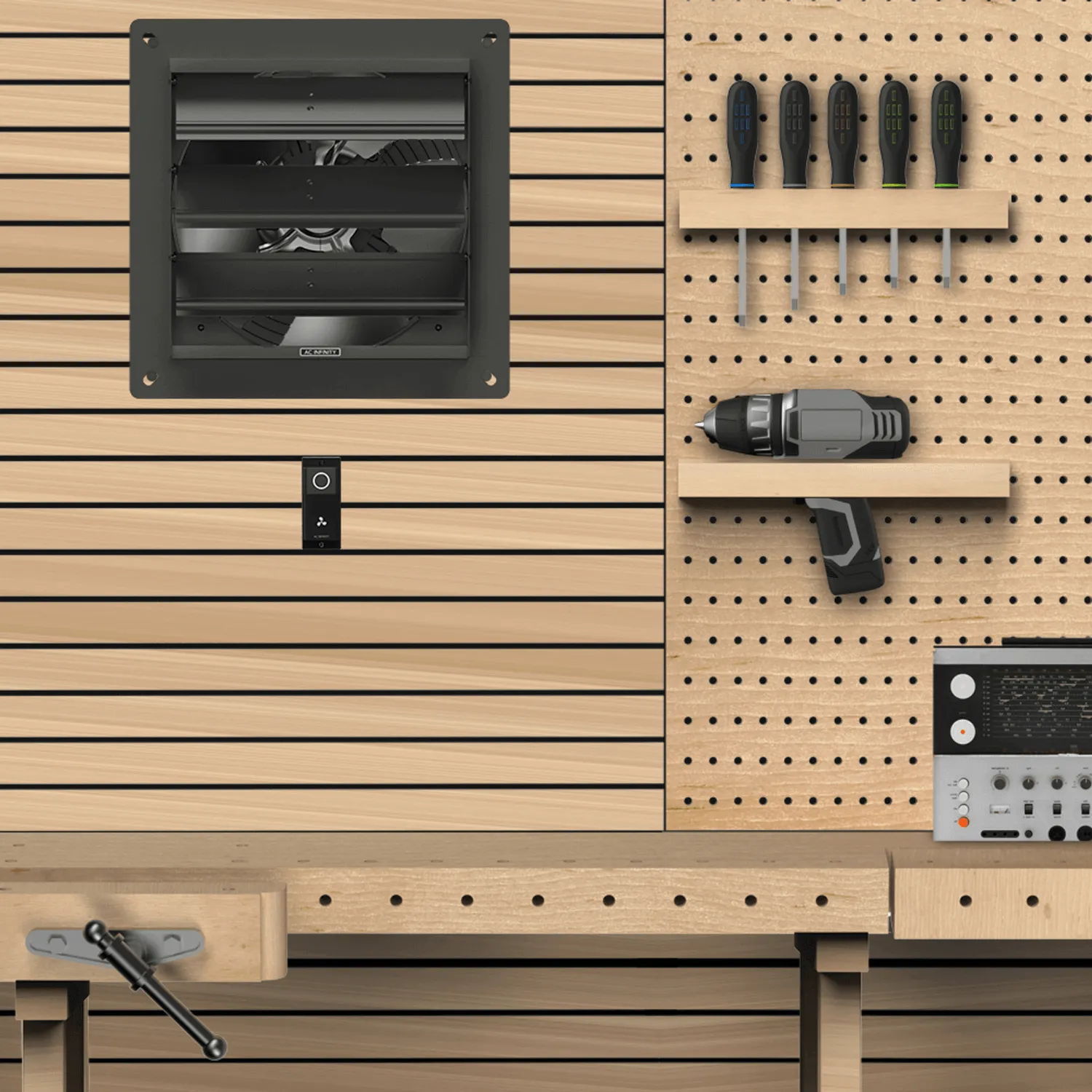

Durable Design: This fan highlights steel shutters, aluminum blades, and is IP-44 rated ensuring high resistance against liquid and dust. The fan's construction provides a heavy-duty performance, perfect for demanding environments such as greenhouses, garages, attics, workshops, and sheds.

Fully-Enclosed Motor: The fully-enclosed motor ensures long-term reliability and reduced noise. The motor is permanently lubricated and equipped with dual-ball bearings that are rated for 67,000 hours of operation, making the fan a reliable and durable option for various applications.

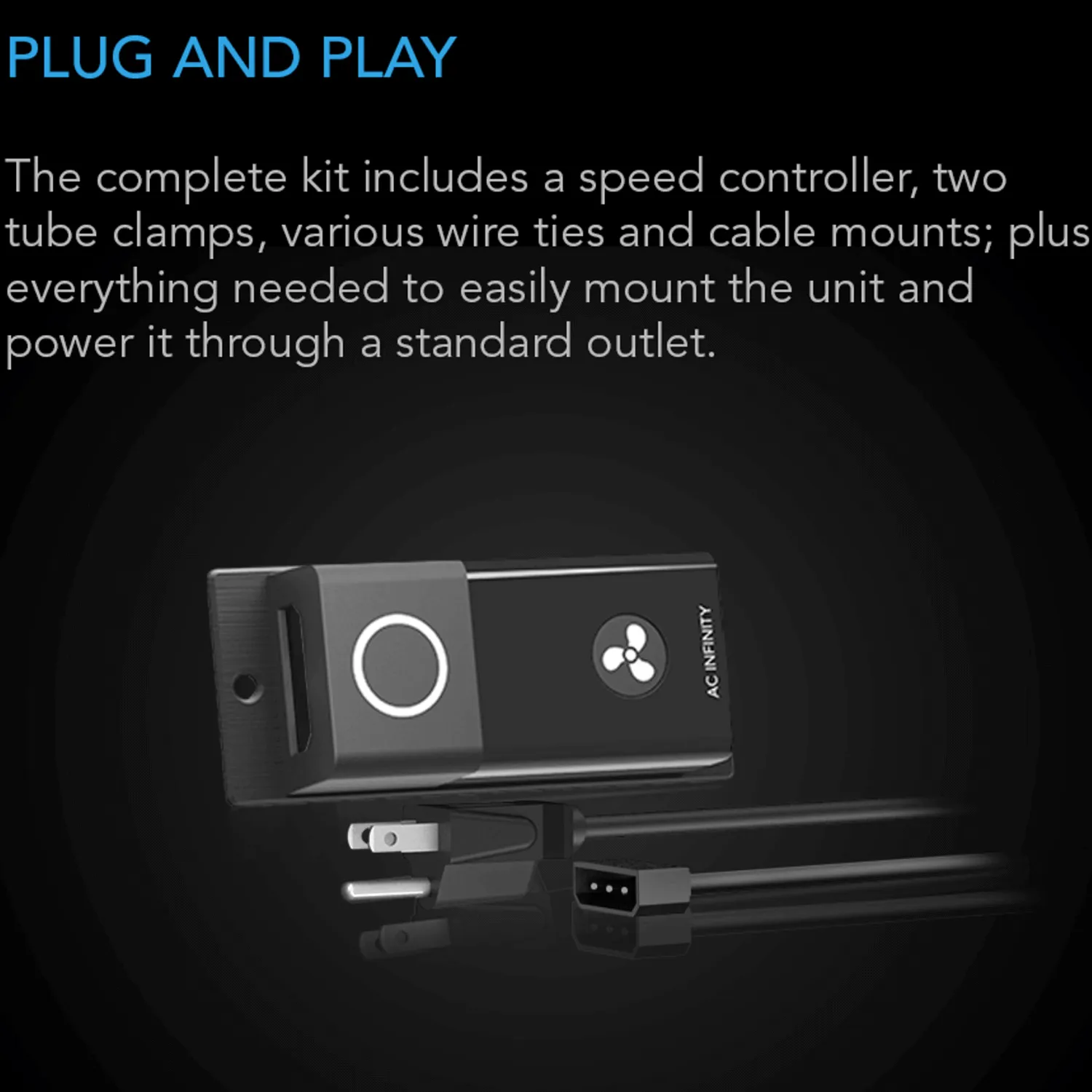

Comprehensive Features: The product package includes everything required to mount the fan unit and power it via an outlet. The shutter fan is part of the UIS™ platform, comprising of grow devices and smart controllers that integrate seamlessly to create optimal environments. Its user-friendly design features automatic closure of the steel shutters when not in use to ensure durability and efficiency

Specifications

Manufacturer: AC Infinity Inc.

Product Name: AIRLIFT S16

Product Model: AC-ALS16

UPC Code: 819137021464

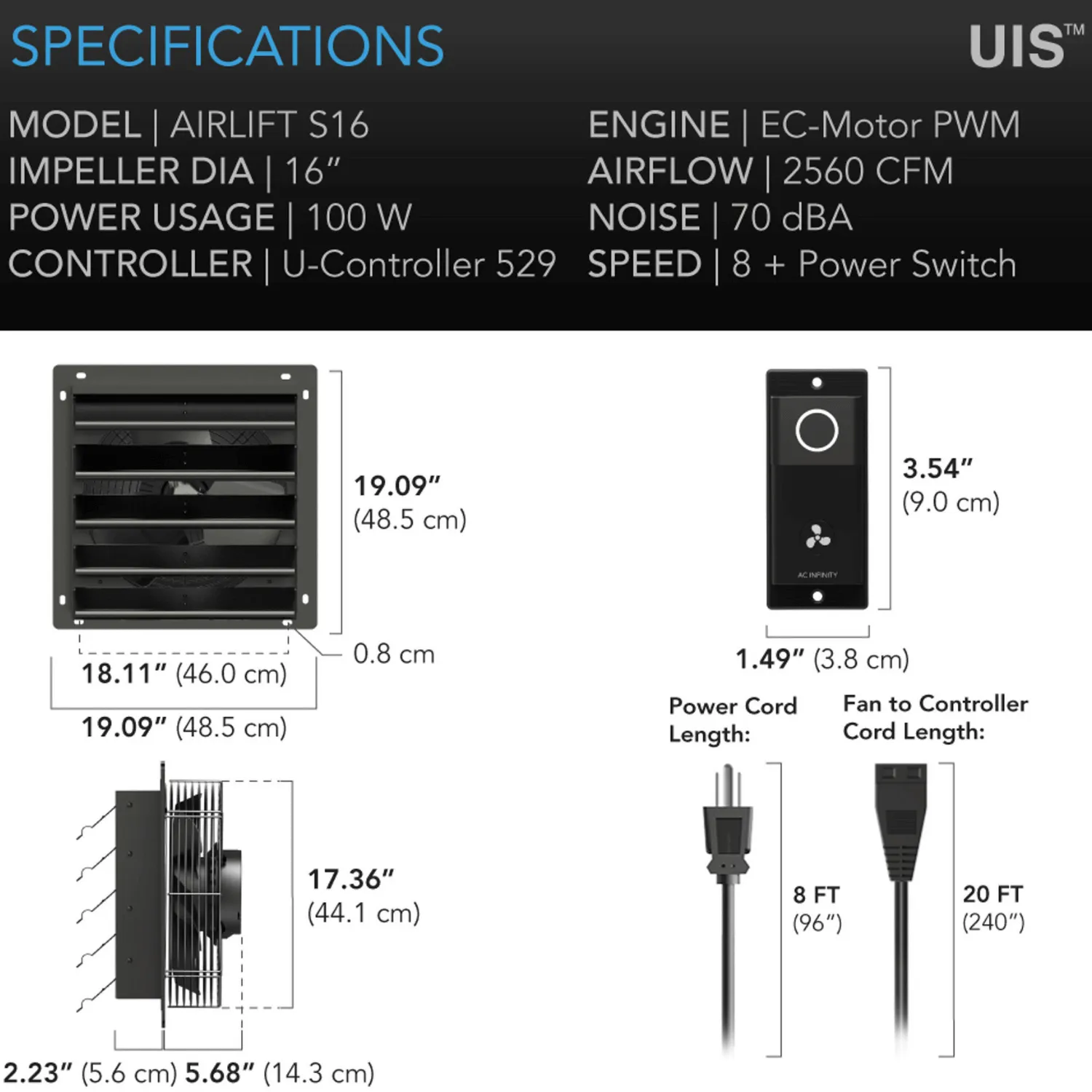

Product and Mounting Dimensions - Fan Unit

Total Dimensions: 19.09 x 19.09 x 7.72 in. (48.5 x 48.5 x 19.6 cm)

Frontside Enclosure Dimensions: 16.77 x 16.77 in. (42.6 x 42.6 cm)

Required Mounting Hole: 16.92 x 16.92 in. (43.0 x 43.0 cm)

Hole to Hole Distance: 18.11 x 18.11 in. (46.0 x 46.0 cm)

Screw Hole Size: Ø 0.27 in. (Ø 0.7 cm)

Cord Length to Controller: 240 in. (20 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)

Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)

Hole to Hole Distance: 2.87 in. (7.3 cm)

Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)

Cord Length to Plug: 96 in. (8 feet)

Product Performance and Technical Specs

Total Airflow: 2560 CFM

Total Noise: 67 dBA

Static Pressure: 25.9mm-H2O

Operating Voltage: 100-240V AC

Power: 100W

Current: 1.5A

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

L10 Life Expectancy: 67,000 Hours

Data Sheets

Download the product manual:

Download the CE Certification:
