Name: AC Infinity Air Filter Box with High Efficacy Filter, 8-Inch
SKU: 528833

Description

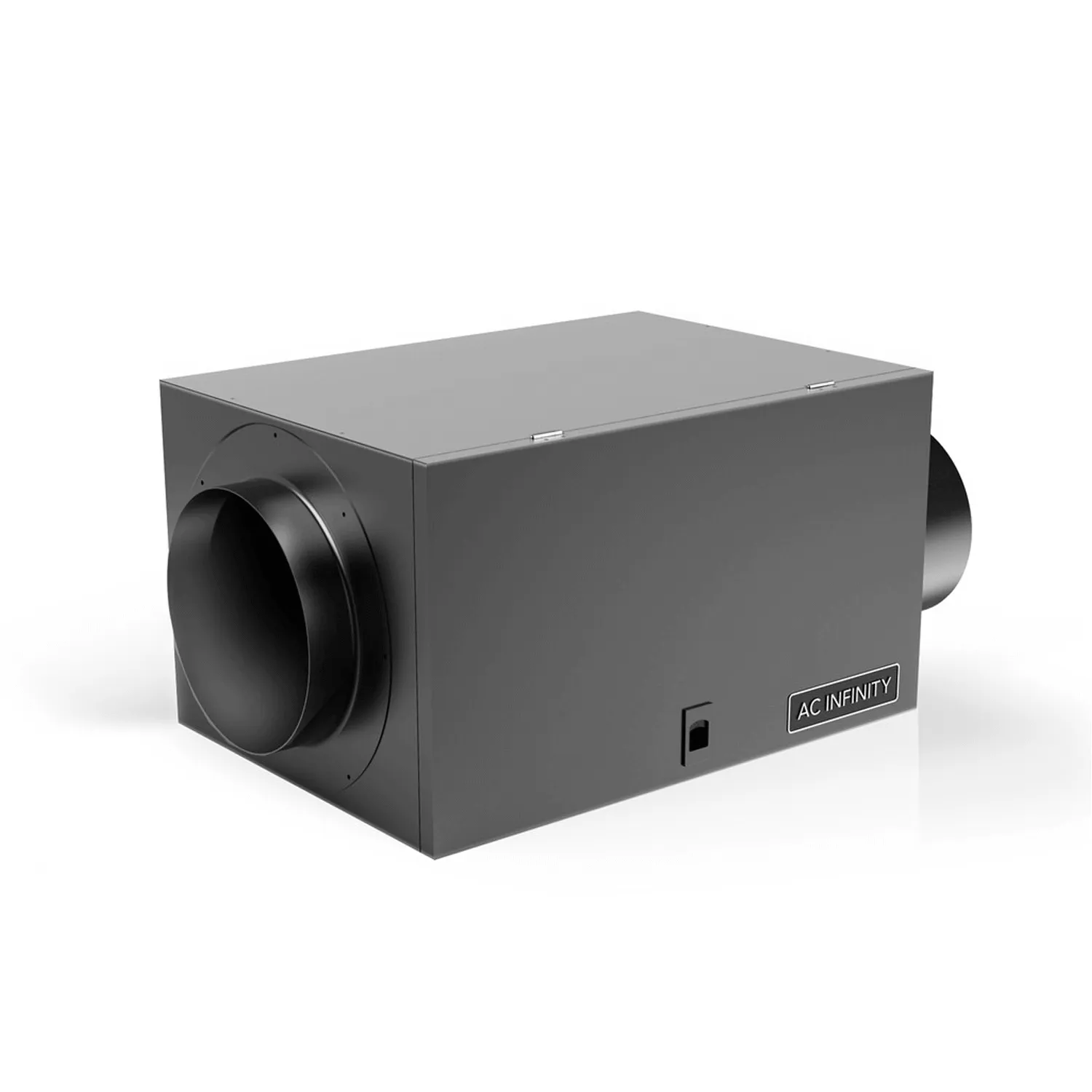

Duct Filter Box: Designed to be used with inline fans to circulate fresh air and block dust and odors. The box is built using 1mm thick cold-rolled steel and aluminum duct flanges, ensuring a sturdy build that can withstand extreme weather.

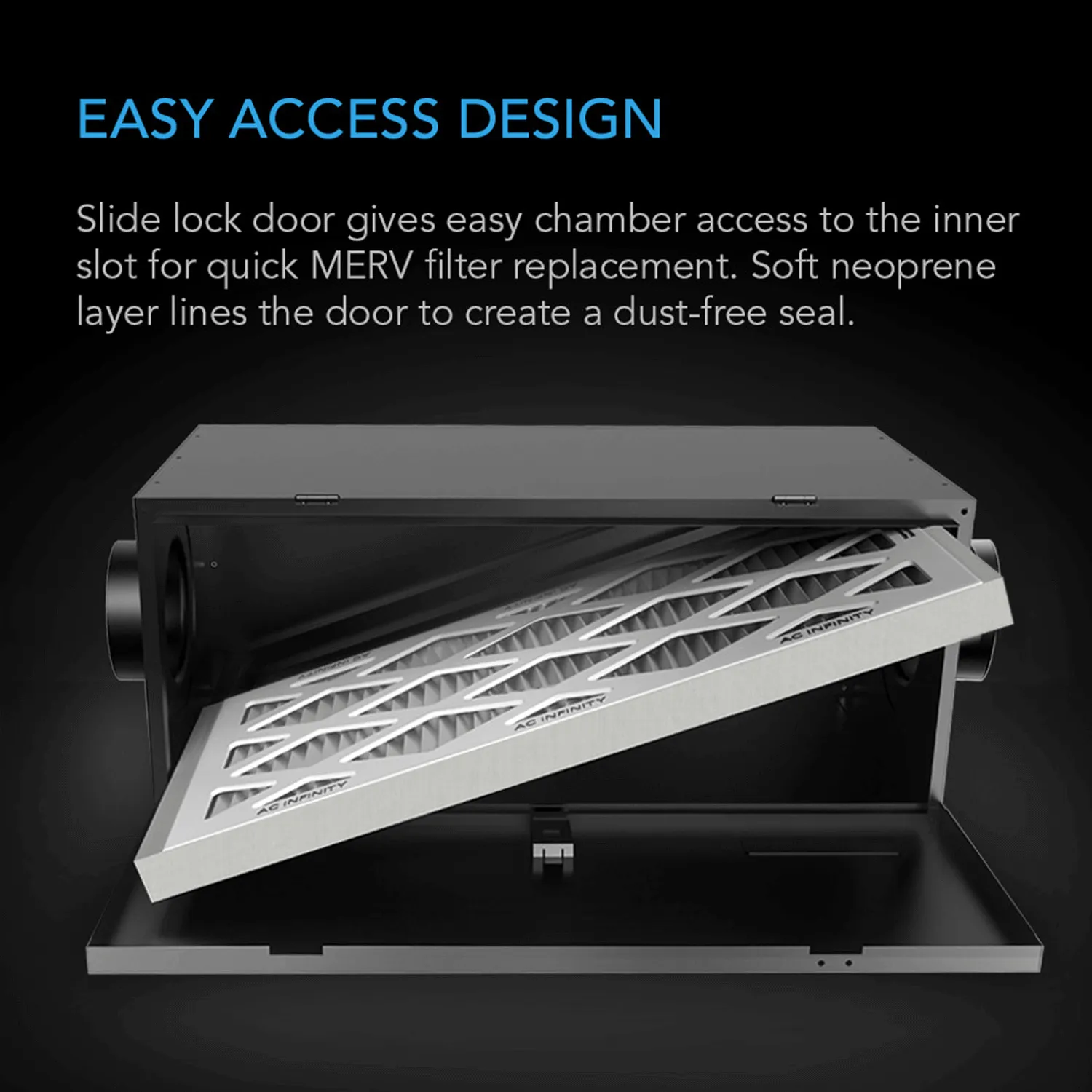

Low-Maintenance Design: Features a hinge-sealed door equipped with a slide lock which provides easy access to the inner chamber. The door is lined with a soft neoprene layer that securely holds the filter in place and prevents dust from entering.

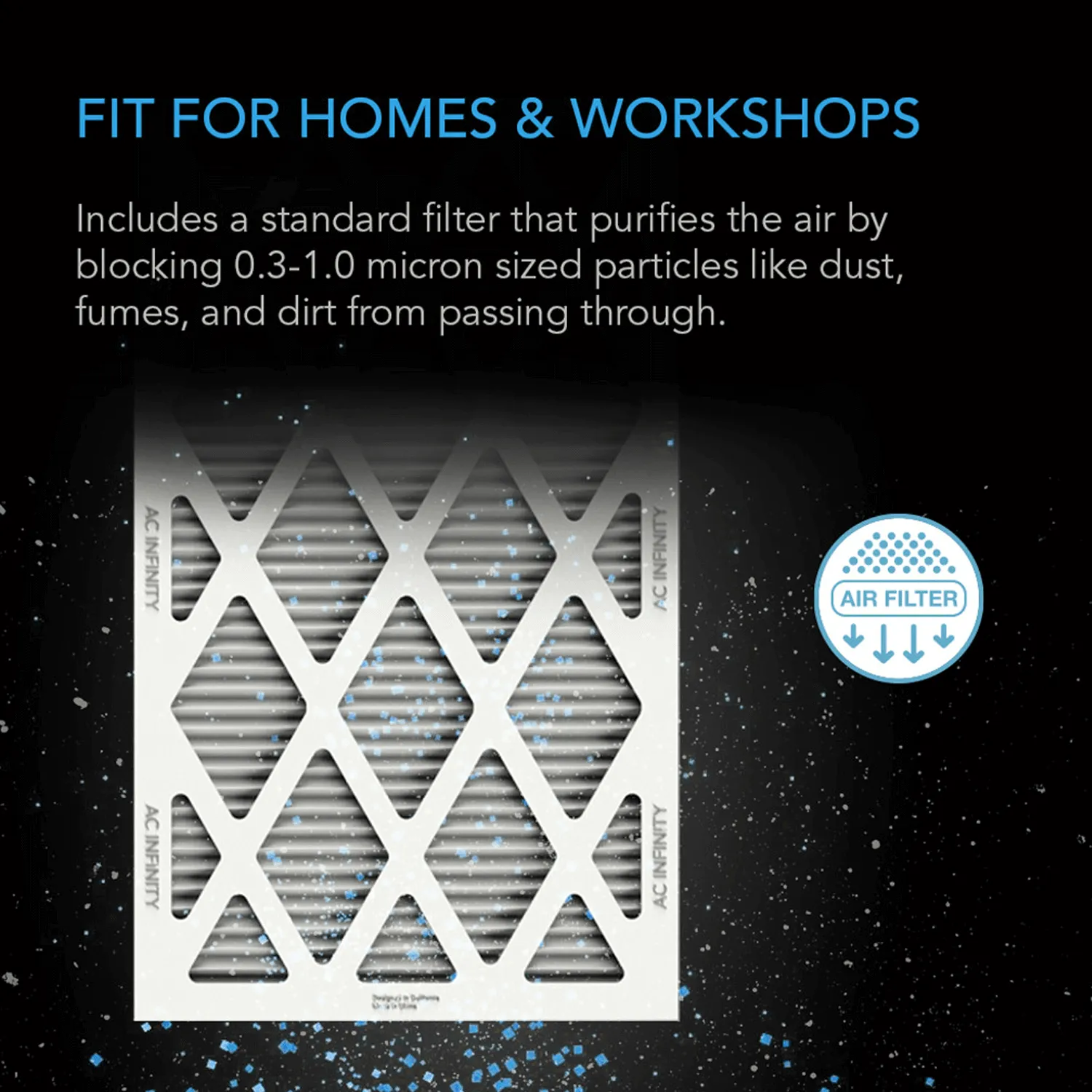

Effective Filtration: Accepts standard MERV filter replacements which slide smoothly into the inner chamber's filter slot. Included with the box is a high-efficacy pleated air filter capable of trapping 0.3-1.0 micron-sized particles such as dust, dirt, lint, and odor.

Product Dimension and Compatibility: Measures 22.51 x 11.57 x 13.93 inches. Fits 8-inch inline fans and enables a streamlined installation for high efficiency filtration in HVAC and grow applications. It accepts 14 x 20 x 1 inch filters, and has a maximum capacity of 1600 cubic feet per minute.

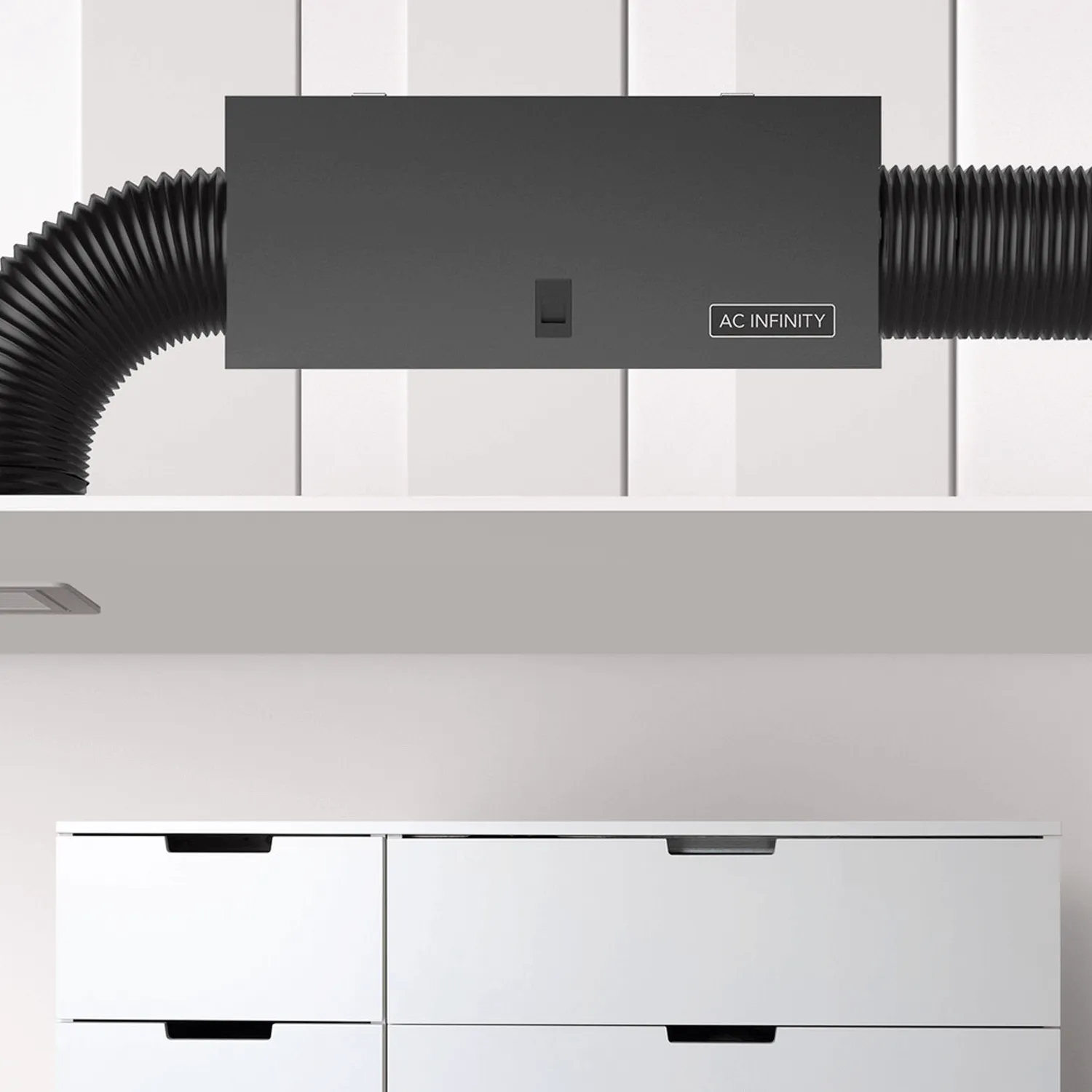

Recommended Use: Attaching the air filter box at the beginning of your ductwork can greatly reduce the number of suspended particles in your indoor air. For best results, it is recommended to use it with a high static pressure fan, such as the CLOUDLINE Series of duct fans.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: Air Filter Box 8""

Product Model: AC-AFB8

UPC Code: 819137021716

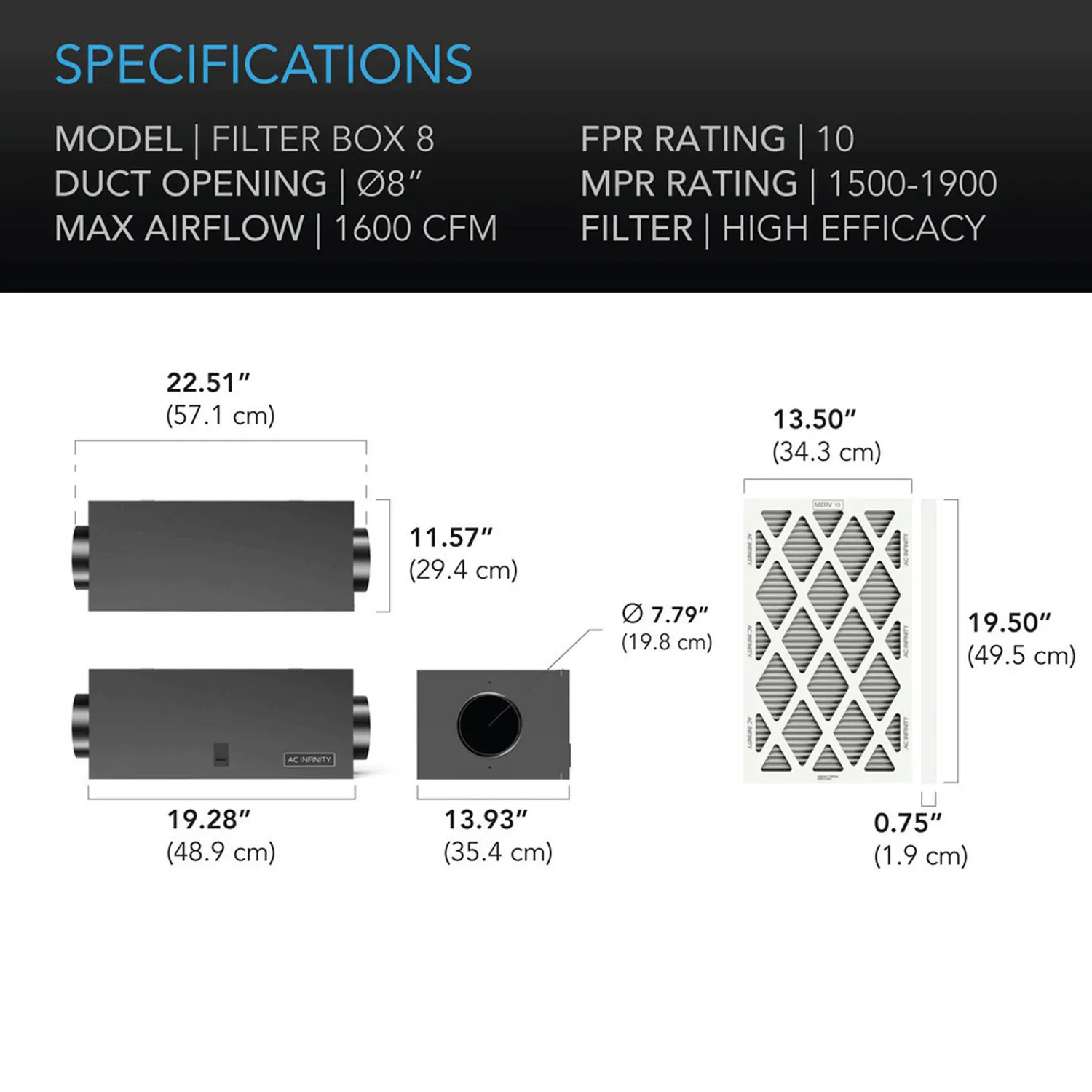

Product and Mounting Dimensions

Duct Opening Size: Approximately 7.79 inches

Total Dimensions: 22.51 x 11.57 x 13.93 inches

Flange Length: Approximately 3.23 inches

Product Performance and Technical Specs

Box Material: Steel

Flange Material: Aluminum

Finish: Matte Black

Filter Size: Accepts filters of 14 x 20 x 1 inches

Minimum Airflow Range: 402-604 cubic feet per minute

Maximum Airflow: 1600 cubic feet per minute

Compatible Fan Models: CLOUDLINE S8, CLOUDLINE T8

Data Sheet

Download the Product Manual:
